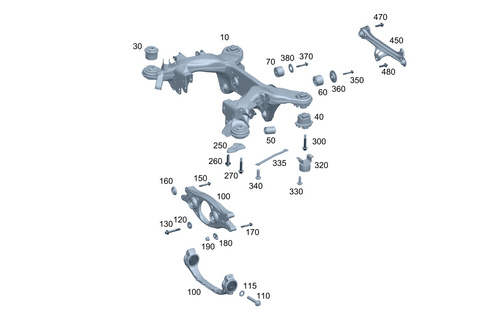

Rear Axle Carrier for 2026 Mercedes-Benz S500
No.
Part # / Description / Price
Price
10
MSRP $1,920.00
$1,311.00
30
MSRP $47.50
$35.06
40
Axle Sub-Frame Suspension
Mercedes-Benz
Mercedes-Benz Description: Rear axle carrier to rear frame floor assembly. Rear left.
40
MSRP $54.00
$38.40
50
Bearing Element, Elastom Mercedes-Benz
Mercedes-Benz Description: Spring link to rear axle carrier, left and right.
50
Spring Link Bushing Mercedes-Benz
Mercedes-Benz Description: Spring link to rear axle carrier, left and right. Torsion bushings, spring control arm/semi-trailing arm, rear axle.
MSRP $40.00
$29.52
MSRP $40.00
$29.52
60
Rear Axle Diff Mount Mercedes-Benz
Mercedes-Benz Description: Rear axle differential to rear cross brace. Left. Differential to cross stabilizer rear.
MSRP $51.00
$36.60
MSRP $51.00
$36.60
60
Rear Axle Diff Bearing Mercedes-Benz
Mercedes-Benz Description: Rear axle differential to rear cross brace. Rear axle differential to left rear crossmember.
80
120
Adapter Plate Mercedes-Benz
Mercedes-Benz Description: Left front. Right rear axle differential bearing. Front right. Left rear axle differential bearing.
MSRP $5.00
$3.69
MSRP $5.00
$3.69
125
Front Support Washer Mercedes-Benz
Mercedes-Benz Description: Crossmember mountDiameter: 14mmInside diameter: 14mmOutside diameter: 30mmMaterial thickness: 2,5mm. Support to left and right bodyDiameter: 14mmInside diameter: 14mmOutside diameter: 30mmMaterial thickness: 2,5mm. Bearing bracket to left and right rear ax ...
MSRP $3.00
$2.21
MSRP $3.00
$2.21
130
Screw W Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Rear axle differential to front cross brace. Screwith bolt, differential, rear axle.
MSRP $15.50
$11.38
MSRP $15.50
$11.38
130
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Description: Front rear axle fastening M14X1.5X65. Rear axle mounting,front. Differential to cross stabilizer rear m14x1,5x65. Rear axle differential to front cross brace. Rear axle differential to right rear crossmember.
MSRP $16.00
$11.69
MSRP $16.00
$11.69
150
Hex Head Screw W Flange Mercedes-Benz
Mercedes-Benz Description: Front cross bridge to upper side part. M10x1,5x76.
MSRP $4.70
$3.44
MSRP $4.70
$3.44
160
Nut-And-Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Front cross bridge to upper side part. Upper crossmember mount M10. Cross stabilizer front to side element. Front crossmember to side piece.
MSRP $8.50
$6.17
MSRP $8.50
$6.17
180
Eccentric Disk Mercedes-Benz
Mercedes-Benz Description: Front cross bridge to lower side part. 2 MM. Eccentric disk, mounting support, differential, rear axle. 2 MM.
180
Eccentric Disk Mercedes-Benz
Mercedes-Benz Description: Front cross bridge to lower side part. 5 MM. Eccentric disk, mounting support, differential, rear axle. 5 MM.
180
Eccentric Disk Mercedes-Benz
Mercedes-Benz Description: Front cross bridge to lower side part. 3 MM. Eccentric disk, mounting support, differential, rear axle. 3 MM.
180
Eccentric Disk Mercedes-Benz
Mercedes-Benz Description: Front cross bridge to lower side part. 1 MM. Eccentric disk, mounting support, differential, rear axle. 1 MM.
180
Eccentric Disk Mercedes-Benz
Mercedes-Benz Description: Front cross bridge to lower side part. 0 MM. Eccentric disk, mounting support, differential, rear axle. 0 MM.
MSRP $3.90
$2.83
MSRP $3.90
$2.83
180
Eccentric Disk Mercedes-Benz
Mercedes-Benz Description: Front cross bridge to lower side part. 4 MM. Eccentric disk, mounting support, differential, rear axle. 4 MM.
260
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Left strut mount to body-in-white. M8X29
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Left stop plate to body-in-white. Left mounting console mount.
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Left stop plate to body-in-white. Left mounting console mount.
MSRP $3.40
$2.46
MSRP $3.40
$2.46
270
Screw W Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Rear axle carrier to front frame floor assembly. M14x2x150.
270
Screw W Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Rear axle carrier to front frame floor assembly. Rear subframe to frame floor unit, front. Screwith bolt, decoupling element, front, rear axle carrier.
MSRP $18.50
$13.53
MSRP $18.50
$13.53
300
Screw W Washer Assembly Mercedes-Benz
Mercedes-Benz Description: Rear axle carrier to rear frame floor assembly. M14x2x160.
350
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: Rear axle differential to rear cross brace. M16x1.5x96. Rear axle differential to left rear crossmember.
350
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: Extension to rear axle carrier. M16x1,5x124. Rear axle differential to left rear crossmember.
MSRP $48.50
$35.67
MSRP $48.50
$35.67
350
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: Rear axle differential to rear cross brace. M16x1,5x94. Rear axle differential to left rear crossmember.
MSRP $26.00
$19.07
MSRP $26.00
$19.07
360
Stop Plate Mercedes-Benz
Mercedes-Benz Description: Rear axle differential to rear cross brace. Rear axle differential to left rear crossmember.
MSRP $8.00
$5.90
MSRP $8.00
$5.90
450
MSRP $94.00
$67.20
500
Adapter, Ra Diff Bearing Mercedes-Benz
Mercedes-Benz Description: To rear axle crossmember. On rear axle transvere casing. To rear axle housing.
510
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Extension to rear axle carrier. M12X1.5X30
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Steering to cross member. Attachment, assembly frame. Lower crossmember mount. Holder to rear axle housing. Tie rod end pieces to center tie rod, left.
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Steering to cross member. Attachment, assembly frame. Lower crossmember mount. Holder to rear axle housing. Tie rod end pieces to center tie rod, left.
MSRP $6.50
$4.67
MSRP $6.50
$4.67
