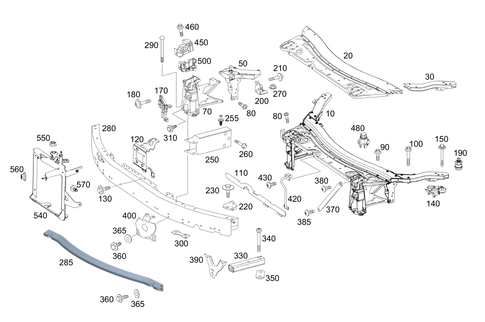

Front Reinforcement and Radiator Support for 2019 Mercedes-Benz GLC63 AMG
No.
Part # / Description / Price
Price
10
MSRP $535.00
$364.80
30
MSRP $169.00
$115.14
30
MSRP $159.00
$114.00
50
MSRP $155.00
$111.60
50
MSRP $164.00
$117.60
70
MSRP $130.00
$93.60
70
MSRP $130.00
$93.60
110
Cover Plate
Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: At front cross member.
120
MSRP $124.00
$88.80
130
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: Upper air regulation system mount. M6x24.
MSRP $3.20
$2.34
MSRP $3.20
$2.34
140
Mounting Plate Mercedes-Benz
Mercedes-Benz Description: Crossmember, right. Spacer plate at right.
MSRP $46.00
$33.83
MSRP $46.00
$33.83
140
Mounting Plate Mercedes-Benz
Mercedes-Benz Description: Crossmember, left. Spacer plate at left.
MSRP $38.50
$28.29
MSRP $38.50
$28.29
150
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: M6x61. Crossmember to longitudinal member at left and right. Plate to crossmember at left and right.
MSRP $3.00
$2.21
MSRP $3.00
$2.21
170
MSRP $68.00
$48.60
170
MSRP $68.00
$48.60
180
Flat Head Screw Mercedes-Benz
Mercedes-Benz Description: Mounting console to crossmember at left and right. M6x23.
MSRP $2.90
$2.09
MSRP $2.90
$2.09
180
Self-Tap Pan Head Screw Mercedes-Benz
Mercedes-Benz Description: M6x33. Mounting console to crossmember at left and right.
MSRP $1.90
$1.35
MSRP $1.90
$1.35
190
Weld Stud W Drawn-Arc Ignition Mercedes-Benz
Mercedes-Benz Description: Ground connection. M8 act-fast. Plate at crossmember, left.
MSRP $7.50
$5.54
MSRP $7.50
$5.54
200
MSRP $58.00
$41.40
200
MSRP $57.00
$40.80
200
MSRP $63.00
$45.00
210
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: M6x33. Angle bracket to crossmember at left and right.
MSRP $1.20
$0.86
MSRP $1.20
$0.86
220
MSRP $18.50
$13.53
220
MSRP $25.00
$18.45
230
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: M6x25. Actuator mount. Front end assembly. Left holder. Mount, support to crossmember, left and right. Bracket to crossmember at left and right. Holder to body-in-white. Mounting, tank.
MSRP $1.90
$1.35
MSRP $1.90
$1.35
250
MSRP $240.00
$163.02
250
MSRP $240.00
$164.16
255
MSRP $3.70
$2.71
260
Hexagonal Head Screw Mercedes-Benz
Mercedes-Benz Description: Mount, crossmember to front longitudinal member. Left and right absorber mount. Absorber to longitudinal member at left and right. Absorber to integral carrier, left and right. Absorber to left and right crossmember. Screw, mount, support, crossmember, front.
MSRP $31.00
$22.76
MSRP $31.00
$22.76
280
Cross-Member Mercedes-Benz
Mercedes-Benz Notes: THE OLD PART MUST NO LONGER BE INSTALLED
Description: Bottom.
MSRP $458.00
$312.36
MSRP $458.00
$312.36
285
Cross-Member Mercedes-Benz
Mercedes-Benz Notes: REPLACEMENT PART CAN ONLY BE ORDERED VIA EDAG SPARE PART PORTAL HTTPS://ETOS.EDAG.DE/.
Description: Below crossmember.
300
Threaded Plate Mercedes-Benz
Mercedes-Benz Description: Threaded plate, left, mounting support, crossmember, front. Left and right absorber to crossmember.
MSRP $51.00
$36.60
MSRP $51.00
$36.60
330
MSRP $110.00
$79.20
340
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Lower absorber to left and right integral carrier
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. ABSORBER AT BOTTOM TO INTEGRAL CARRIER AT LEFT AND RIGHT
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. BRACKET TO ENGINE
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. ABSORBER AT BOTTOM TO INTEGRAL CARRIER AT LEFT AND RIGHT
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. BRACKET TO ENGINE
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
MSRP $8.50
$6.15
MSRP $8.50
$6.15
350
Threaded Plate Mercedes-Benz
Mercedes-Benz Description: Absorber at bottom to integral carrier at left and right. Lower absorber to left and right integral carrier. Lower impact absorber to left integral carrier.
MSRP $13.50
$9.84
MSRP $13.50
$9.84
360
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Notes: ATTENTION: ORDER WASHER AS WELL
Description: M8x25-8.8. Fuel tank to console. Bracket to mounting plate or to transmission. Bracket to bumper. Shackle to torsion bar. Intermediate bearing to frame.
MSRP $4.20
$3.08
MSRP $4.20
$3.08
370
MSRP $119.00
$85.20
380
Upper Hinge Bolt Mercedes-Benz
Mercedes-Benz Description: Hinges & hardware. Rails & components. Handles & locks, passenger side door.
MSRP $1.10
$0.76
MSRP $1.10
$0.76
390
MSRP $68.00
$48.60
390
MSRP $56.00
$40.20
400
MSRP $117.00
$84.00
450
Hood Catch Mercedes-Benz
Mercedes-Benz Description: To reinforcement at left and right. To crossmember. Left and right lower part. Left and right hood. Bottom. Latch, lower part, hood catch.
MSRP $99.00
$70.80
MSRP $99.00
$70.80
460
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz Description: M6x19. Holder mount. Holder to fender and left A-pillar. Screening to side member. Right sensor mount. Hood lock to carrier at left and right. Mount, left and right latch.
480
Stop Buffer Mercedes-Benz
Mercedes-Benz Description: Left and right. Engine hood rest to stiffening. Hood padding to reinforcement.
MSRP $12.00
$8.86
MSRP $12.00
$8.86
500
Switch Mercedes-Benz
Mercedes-Benz Description: Left latch/plug. Engine hood catch, left. Engine hood latch, driver side. Hood catch right. Right limit switch. Contact switch, hood catch, left. Engine hood contact for anti-theft alarm system. Left limit switch.
MSRP $26.00
$19.07
MSRP $26.00
$19.07
540
MSRP $160.00
$115.20
570
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.
