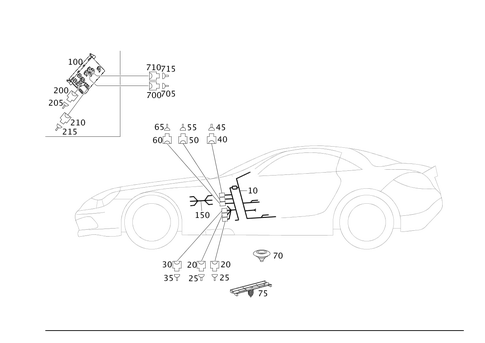

Door Wiring Harness and Door Control Module for 2006 Mercedes-Benz SLR McLaren
No.
Part # / Description / Price
Price
10
Electric Line
Mercedes-Benz
Mercedes-Benz Notes: NOT VALID FOR VEHICLE IDENT NUMBERS M000097-M000100. PLEASE ALSO ORDER FOR DRIVER DOOR A 199 820 89 04 AND FRONT PASSENGER
DOOR A 199 820 90 04
Description: Left door.
10
Electric Line Mercedes-Benz
Mercedes-Benz Notes: NOT VALID FOR VEHICLE IDENT NUMBERS M000097-M000100. PLEASE ALSO ORDER FOR DRIVER DOOR A 199 820 89 04 AND FRONT PASSENGER
DOOR A 199 820 90 04
Description: Right door.
20
Housing Mercedes-Benz
Mercedes-Benz Description: Breakdown/information button conn. Glove compartment. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Mobile phone disconnecting point x39/37. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Plug connection, group of switches, centre console. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Contact carrier to 001 545 59 40. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60.
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Mobile phone disconnecting point x39/37. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Plug connection, group of switches, centre console. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60. Contact carrier to 001 545 59 40. 10-pin mqs
model 1: mqs
slots: 10
release tool: w220 589 01 99 60.
MSRP $3.60
$2.60
MSRP $3.60
$2.60
35
Contact Socket Mercedes-Benz
Mercedes-Benz Description: CONNECTOR TERMINAL 30 SBC FEED-IN X151. 4.0 MM2 SLK2.8Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: SLKModel 2: 2.8Release tool: W220 589 01 99 62. CONTROL UNIT FOR REAR SEATS N25/6. 4.0 MM2 SLK2.8Leitungsquerschnitt Min/Max: ...
MSRP $5.00
$3.69
MSRP $5.00
$3.69
60
Receptacle Housing Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Front left door separation point x35/1. 2-pin. Intermediate connection, airbag. 2-pin. Door separation point x35/41. X35/42. 2-pin.
MSRP $5.50
$4.06
MSRP $5.50
$4.06
65
Contact Pin Mercedes-Benz
Mercedes-Benz Description: 0.35-0.5 MM2 ELO
Leitungsquerschnitt Min/Max: 0,35-0,5mm2
Oberflächenschutz PINs: Au
ELA: -
Model 1: ELO.
Leitungsquerschnitt Min/Max: 0,35-0,5mm2
Oberflächenschutz PINs: Au
ELA: -
Model 1: ELO.
70
Grommet Mercedes-Benz
Mercedes-Benz Description: Hose guide. Tank fitting ground line. Thru hole.
MSRP $10.00
$7.26
MSRP $10.00
$7.26
100
Control Unit 1 Mercedes-Benz
Mercedes-Benz Description: Door control unit to right door sill.
MSRP $357.50
$243.96
MSRP $357.50
$243.96
100
MSRP $374.50
$255.36
200
Plug Mercedes-Benz
Mercedes-Benz Description: Driver dynamic seat control unit n32/19*1. 7-pin mqs, mcp2.8model 1: mqs/mcpmodel 2: 2.8slots: 7release tool: w220 589 01 99 60 / w000 589 13 99 30. Front passenger dynamic seat control unit n32/22*1. 7-pin mqs, mcp2.8model 1: mqs/mcpmodel 2: 2.8slots: 7re ...
205
Contact Socket Mercedes-Benz
Mercedes-Benz Description: BUS NODE (ROOF) N70. 1.5-2.5 MM2 MCP2.8Leitungsquerschnitt Min/Max: 1,5-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: MCPModel 2: 2.8Release tool: W000 589 13 99 30Crimp tool: W220 589 01 99 05. LEFT TAIL LAMP E3. 1.5-2.5 MM2 MCP2.8Leitungsquerschnitt Mi ...
MSRP $7.00
$5.04
MSRP $7.00
$5.04
210
Socket-Outlet Mercedes-Benz
Mercedes-Benz Description: Airscarf control unit n25/7. 10-pin mqs. Fuse and relay box,driver n10/1/10. 10-pin mqs. Heated seats and seat ventilation n25/7. 10-pin mqs. Door control unit at driver door, left and right n69/1. N69/2. 10-pin mqs.
MSRP $12.50
$9.23
MSRP $12.50
$9.23
215
Electric Line Mercedes-Benz
Mercedes-Benz Notes: CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED.
SEE WIS FOR REPAIR INSTRUCTIONS.
=================================================================================================
SOLDER CONNECTOR SLEEVES: TOTAL WIRE CROSS-SECTION:
A 001 546 99 41 GREEN 0.7 - 2.4 MM2
A 002 546 00 41 RED 2.0 - 4.0 MM2
A 002 546 01 41 BLUE 3.5 - 8.0 MM2
A 002 546 11 41 YELLOW 7.5 - 12.0 MM2
BUTT JOINT:
A 002 546 13 41 0.5 MM2
A 002 546 14 41 0.8 MM2
A 002 546 15 41 1.3 MM2
A 002 546 16 41 2.0 MM2
===================================================================================================
MSRP $7.00
$5.17
MSRP $7.00
$5.17
700
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: Door control module left, black n69/1. 7-pin mqs/mcp2.8. Front left door control. 7-pin mqs/mcp2.8. Control module sam/srb front, black n10/1. 7-pin mqs/mcp2.8. Fuse and relay module, driver n10/1 / 15. 7-pin mqs/mcp2.8. Door control unit at driver door, left and right n69/1 n69/2. 7-pin mqs/mcp2.8.
MSRP $10.50
$7.63
MSRP $10.50
$7.63
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
